Box Build Service Portfolio

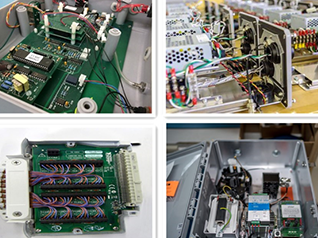

• Electronic Enclosure Assembly: Integration of PCBs, components, and wiring into aluminum, stainless steel, or plastic enclosures (custom cutouts, mounting)

• Cable Harness Integration: Custom wiring harness assembly (UL/RoHS compliant) and connection to PCBs/enclosure ports – ensures signal integrity and mechanical stability

• Final Product Assembly: End-to-end integration (subassemblies + enclosures + labels + packaging) for ready-to-ship products

• Subassembly & Modular Assembly: Pre-assembly of functional modules (e.g., power supply units, sensor modules) for complex box builds

• Custom Turnkey Solutions: Tailored to unique requirements (e.g., IP-rated enclosures for outdoor use, conformal coating for harsh environments)

Lead Time

• Prototype & Small Batch (1–100 units): 7–14 business days (includes DFM review for enclosure/线束 compatibility)

• Medium to Large Volume (100–10,000+ units): 14–28 days – timeline adjusts based on BOM complexity (e.g., IP67 enclosure vs. standard plastic)

Key Process Capabilities

• PCB Assembly: SMT (01005/BGA), THT, and hybrid assembly – integrated with box build workflow

• Mechanical Assembly: Enclosure drilling, tapping, and hardware installation (screws, latches, hinges)

• Protection Treatments: Conformal coating (IPC-CC-830) for moisture/dust resistance; potting for vibration/shock protection

• Functional Testing: System-level testing (power-up, signal transmission, environmental stress) – 100% pass before shipment

Enclosure Materials

• Aluminum: Lightweight, heat-dissipating – ideal for industrial automation, automotive electronics (anodized finish optional)

• Stainless Steel: Corrosion-resistant – suitable for medical devices, marine/aerospace applications (304/316 grades)

• Plastic: Cost-effective, lightweight – ABS/PC for consumer electronics, Nylon for high-temperature environments

• IP-Rated Enclosures: IP65/IP67 options for outdoor/harsh environment use (e.g., telecommunications, industrial sensors)

Surface Finishes

• Anodizing: For aluminum enclosures – available in black, silver, or custom colors (enhances durability and aesthetics)

• Powder Coating: For steel/plastic enclosures – scratch-resistant, customizable (RAL color matching available)

• Painting: Liquid paint for high-gloss or textured finishes – meets medical/aerospace aesthetic standards

Components & Harness Materials

• Connectors: MIL-SPEC, industrial (Molex/TE), or custom connectors – UL-certified options available

• Cable Harnesses: RoHS-compliant wires (UL 1015/3266), shielding (EMI/RFI), and insulation (PVC/Teflon)

• General Components: 100% RoHS-compliant, with UL-certified parts upon request (traceability documents provided)

• Industrial Automation: Box builds for PLCs, sensor controllers, and machine control panels (IP65 enclosures, conformal coating)

• Medical Devices: Enclosed diagnostic equipment, patient monitors (stainless steel, biocompatible finishes, ISO 13485 compliant)

• Aerospace & Defense: Ruggedized box builds for avionics, communication modules (MIL-SPEC components, vibration testing)

• Telecommunications: Outdoor 5G small cell enclosures, data center server modules (IP67, heat-dissipating aluminum)

• Consumer Electronics: Smart home controllers, wearable chargers (plastic enclosures, custom colors)

• Automotive Electronics: In-vehicle control units, EV charging accessories (high-temperature plastics, EMI shielding)

• End-to-End Turnkey Solution: One partner for PCB fabrication, component sourcing, harness assembly, enclosure integration, and testing – eliminates 3+ vendor coordination

• Strict Quality Compliance: Adheres to IPC-A-610 (PCB assembly), ISO 9001 (quality management), and industry-specific standards (ISO 13485 for medical, MIL-SPEC for defense)

• Flexible Scalability: Supports 1-unit prototypes (for R&D) to 10,000+ unit mass production – no minimum order quantity (MOQ) for prototypes

• Engineering Expertise: DFM feedback to optimize enclosure design (e.g., cable routing,散热孔 placement) and reduce assembly costs by 15–20%

• Global Logistics: Partnered with DHL/FedEx/sea freight carriers – door-to-door delivery with tracking, ensuring on-time arrival worldwide

“China 365PCB’s turnkey box build service exceeded our expectations. Quality and delivery were flawless, enabling us to hit our product launch on schedule.”
— Alex T., Industrial Automation Client

“Their expertise in cable harness and enclosure assembly helped us streamline production significantly. We cut supply chain management time by 40%.”
— Sarah L., Medical Device Manufacturer

Q1: What does turnkey electronic contract box build assembly include?

A1: It’s a full-service solution covering PCB fabrication, component sourcing (RoHS/UL compliant), custom cable harness assembly, electronic enclosure integration (drilling/mounting), system-level functional testing, and final packaging. The result is a fully assembled, ready-to-ship product with no additional work needed.

Q2: What lead times can I expect for box build assembly?

A2: Prototype and small-batch orders (1–100 units) take 7–14 days. Medium to large volumes (100+ units) range from 14–28 days, depending on complexity—for example, IP67-rated enclosures or conformal coating add minimal time but are factored into the timeline.

Q3: Do you support custom cable harness assembly within box builds?

A3: Yes, custom cable harnesses are a core part of our box build service. We design and assemble harnesses to your specifications—including wire type (UL 1015/3266), shielding (EMI/RFI), connector type (Molex/TE/custom), and length—ensuring perfect integration with PCBs and enclosures.

Q4: Are your components RoHS compliant and UL certified?

A4: All standard components are RoHS compliant to meet global environmental regulations. UL-certified components (connectors, wires, enclosures) are available upon request—we provide traceability documents for all certified parts to support your compliance audits.

Q5: Can China 365PCB handle high-volume turnkey box build assembly?

A5: Yes, we have dedicated production lines for high-volume box builds (10,000+ units). Our capacity scales with your needs, and we use automated tools for enclosure drilling, harness assembly, and testing to maintain consistency. We also offer JIT (Just-In-Time) delivery to minimize your inventory costs.

• Ideal Scenarios: Our box build service is perfect for customers needing fully integrated electronic products—e.g., industrial control panels (PCB + enclosure + wiring), medical diagnostic devices (stainless steel enclosure + biocompatible components), or outdoor telecom gear (IP67 enclosure + weather-resistant harnesses).

• Key Customer Priorities: We address critical needs like component traceability (for medical/aerospace), strict quality standards (IPC/ISO), and supply chain simplification—managing all steps under one roof reduces delays and communication errors.

• Design Optimization: Our engineers review your enclosure and BOM early to suggest improvements—e.g., optimizing cable routing to avoid interference, or choosing heat-dissipating aluminum for high-power PCBs—saving time and cost in production.

• Environmental Adaptation: For harsh environments, we offer conformal coating (moisture/dust) and potting (vibration/shock)—ensuring your box build products perform reliably in industrial, automotive, or outdoor settings.
