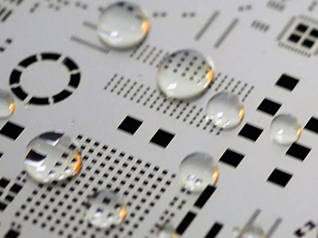

1. Electroformed Stencils (Ultra-Fine Pitch)

• Thickness Range: 50–100 microns (ideal for ultra-thin solder paste layers)

• Aperture Tolerance: ±0.02 mm (20 microns) – supports 01005 components, fine-pitch ICs (≤0.3mm pitch), and micro BGAs

• Key Advantage: Smooth aperture walls for superior solder paste release, minimizing bridging and insufficient paste defects

2. Stainless Steel Laser Cut Stencils (High Durability)

• Thickness Range: 0.1mm – 0.25mm (suits most standard SMT components, including BGAs and QFNs)

• Aperture Tolerance: ±0.025 mm (25 microns) – balanced precision and durability for high-volume production

• Key Advantage: 304/316 stainless steel material resists wear, supporting 10,000+ printing cycles

3. Polyimide Stencils (Flexible & 3D Compatible)

• Thickness Range: 0.05mm – 0.15mm (flexible without cracking)

• Aperture Tolerance: ±0.03 mm (30 microns) – optimized for uneven or curved PCB surfaces

• Key Advantage: Conforms to 3D PCBs, heat sinks, or uneven components (e.g., medical device sensors)

Lead Time & Surface Finish

• Lead Time: Prototypes (3–5 business days); Mass production (7–10 business days)

• Surface Finish: Electropolished (for electroformed/stainless steel stencils) – reduces solder paste adhesion and extends service life

Stencil Base Materials

• Electroformed Stencils: Nickel (standard) or copper (high conductivity) – ultra-smooth surface for micro-paste control

• Stainless Steel Stencils: 304 stainless steel (cost-effective, general use); 316 stainless steel (corrosion-resistant for automotive/industrial environments)

• Polyimide Stencils: Heat-resistant polyimide polymer (withstands 200°C+ printing temperatures, compatible with lead-free solder)

Frame & Mounting Options

• Rigid Frames: Aluminum/steel frames (compatible with automated SMT printers, e.g., DEK, Fuji)

• Frameless: Lightweight, cost-effective for manual printing or small-batch assembly

• Flexible Mounting: Adhesive-backed or magnetic mounting (for polyimide stencils on curved surfaces)

• Consumer Electronics: Electroformed stencils for smartphones/wearables (01005 components); stainless steel for TV/PC motherboards (high-volume)

• Medical Device Assembly: Polyimide stencils for curved sensor PCBs; electroformed stencils for diagnostic equipment (low defect rate)

• Automotive Electronics: 316 stainless steel stencils for engine ECUs (corrosion-resistant); standard stainless steel for infotainment systems

• Aerospace and Defense: Electroformed stencils for avionics (fine-pitch ICs); stainless steel for ruggedized control panels

• Telecommunications: Stainless steel stencils for 5G base stations (high-volume); electroformed for data center server chips (fine-pitch)

• Industrial Control Systems: 316 stainless steel stencils for factory PLCs (humid/harsh environments)

• Full stencil portfolio: One-stop solution for electroformed (fine-pitch), stainless steel (high-volume), and polyimide (3D/curved) needs – no need to source from multiple suppliers

• Ultra-precision manufacturing: Electroformed stencils with ±20 micron tolerance; stainless steel with ±25 micron – meets the strictest SMT assembly requirements

• Fast turnaround: 3–5 day prototypes for R&D validation; 7–10 day mass production to avoid production line downtime

• Customized designs: Supports step stencils (mixed thickness), partial panels (material saving), and custom frame mounting (matches your printer model)

• End-to-end support: Free Gerber file review (optimizes aperture design); 100% dimensional inspection + solder paste release testing before shipment

"China 365PCB's electroformed stencils provided us with unmatched aperture precision for our fine pitch PCB assembly. Highly recommended!"
— Mark T., Senior Process Engineer, TechCorp

"The stainless steel stencils from China 365PCB are durable and have greatly reduced our soldering defects during high-volume runs."
— Linda S., Production Manager, AutoElectronics

"Flexible polyimide stencils from China 365PCB made it possible to print solder paste on uneven surfaces accurately. Excellent service and fast delivery."
— Kevin L., R&D Lead, MedTech Innovations

Q1: What are the main advantages of electroformed stencils?

A1: Electroformed stencils have ultra-smooth, burr-free aperture walls (achieved via nickel/copper electroplating) that ensure precise solder paste release. They’re ideal for ultra-fine-pitch components (01005, ≤0.3mm pitch ICs) and reduce printing defects by 50% compared to standard laser-cut stencils.

Q2: How does a stainless steel stencil compare to electroformed?

A2: Stainless steel stencils are thicker (0.1–0.25mm vs. 50–100 microns for electroformed) and more durable, supporting 10,000+ printing cycles (vs. 3,000–5,000 for electroformed). They’re cost-effective for high-volume production but have slightly lower precision (±25 microns vs. ±20 microns).

Q3: When should I choose polyimide stencils?

A3: Choose polyimide stencils when printing on uneven, curved, or 3D PCB surfaces (e.g., medical sensors with integrated heat sinks) – their flexibility allows full contact with non-flat substrates, which rigid electroformed/stainless steel stencils can’t achieve. They’re also ideal for low-volume prototypes.

Q4: What is the typical lead time for these stencil types?

A4: All three stencil types have the same fast lead time: prototypes (3–5 business days, including Gerber review and aperture optimization) and mass production (7–10 business days, with batch inspection for consistency).

Q5: Do you provide custom frame options?

A5: Yes, we offer fully custom frames – including size (to match your printer), material (aluminum/steel), and mounting (adhesive/magnetic). We also provide frameless options for manual printing, and flexible mounting for polyimide stencils on curved surfaces.
